Visualize Garbage Collection

Updated on November 14, 2023
By Pete Freitag
coldfusionjava

Sun has released (for free) a very cool program called Visual GC 2.0 in their jvmstat toolkit (via: Moazam Raja). The tool will show you graphically how memory is organized into generation in your JVM. This is very handy for tuning garbage collection parameters because you can see how your application uses the JVM's different generations.

For instance if we wanted to visualize garbage collection on a ColdFusion MX application server (note JVM 1.4.2 is required MX 6.1 includes uses version), the first thing we need to know is the process ID of the JVM. This can be found with the utility that comes with jvmstat called jvmps

C:\bin\jvmstat\bat>jvmps
3096
3416 jvmps.jar

From my testing you need to be running as the same user that created the JVM. So if your running ColdFusion MX as a service on Windows it is probable that the JVM is running under the SYSTEM account. To get around this run C:\CFusionMX\bin\cfstop.bat and then C:\CFusionMX\bin\cfstart.bat this will start CFMX as the user that your logged in as. If your on unix you can just su or sudo using the user CFMX is running as.

Next you just launch the visualgc program:

C:\bin\jvmstat\bat>visualgc 3096

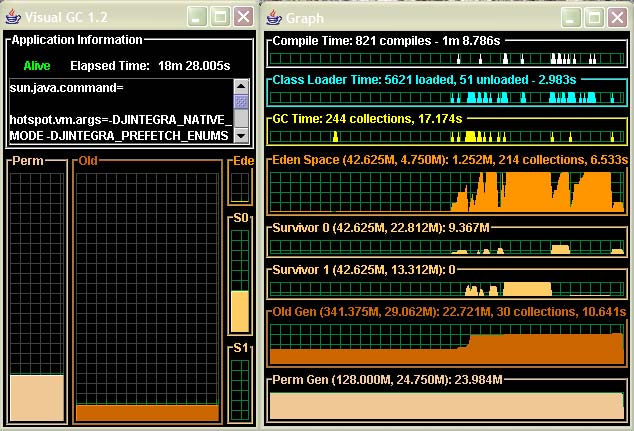

And here's what the output might look like:

Visual GC



gc jvm java

Visualize Garbage Collection was first published on June 08, 2004.

If you like reading about gc, jvm, or java then you might also like:

Fixinator

The Fixinator Code Security Scanner for ColdFusion & CFML is an easy to use security tool that every CF developer can use. It can also easily integrate into CI for automatic scanning on every commit.


Try Fixinator

CFBreak
The weekly newsletter for the CFML Community


Comments

Pete, I just downloaded JVM Stat 3.0 from the Sun website. Unfortunately, the jvmps command wasn't included in the latest distribution. Therefore, I can't find the correct process identifier to use for the tool. Any ideas?
by Damon Gentry on 09/08/2005 at 3:59:10 PM UTC
You need to use jvmstat 2.0 with CF MX 6.1 and JVM 1.4.2 (you can get it here http://java.sun.com/performance/jvmstat/faq.html#11 (see #11). Be sure to follow Pete's other instructions.
by Mike Prest on 07/12/2006 at 5:04:10 PM UTC
The jvmps command has been replaced by jps command in bin directory of SDK 1.5.X
You can use : -m and -l options for informations about used options of the JMV running processes listed by jps.
by Doincedi on 03/22/2007 at 7:23:32 AM UTC
